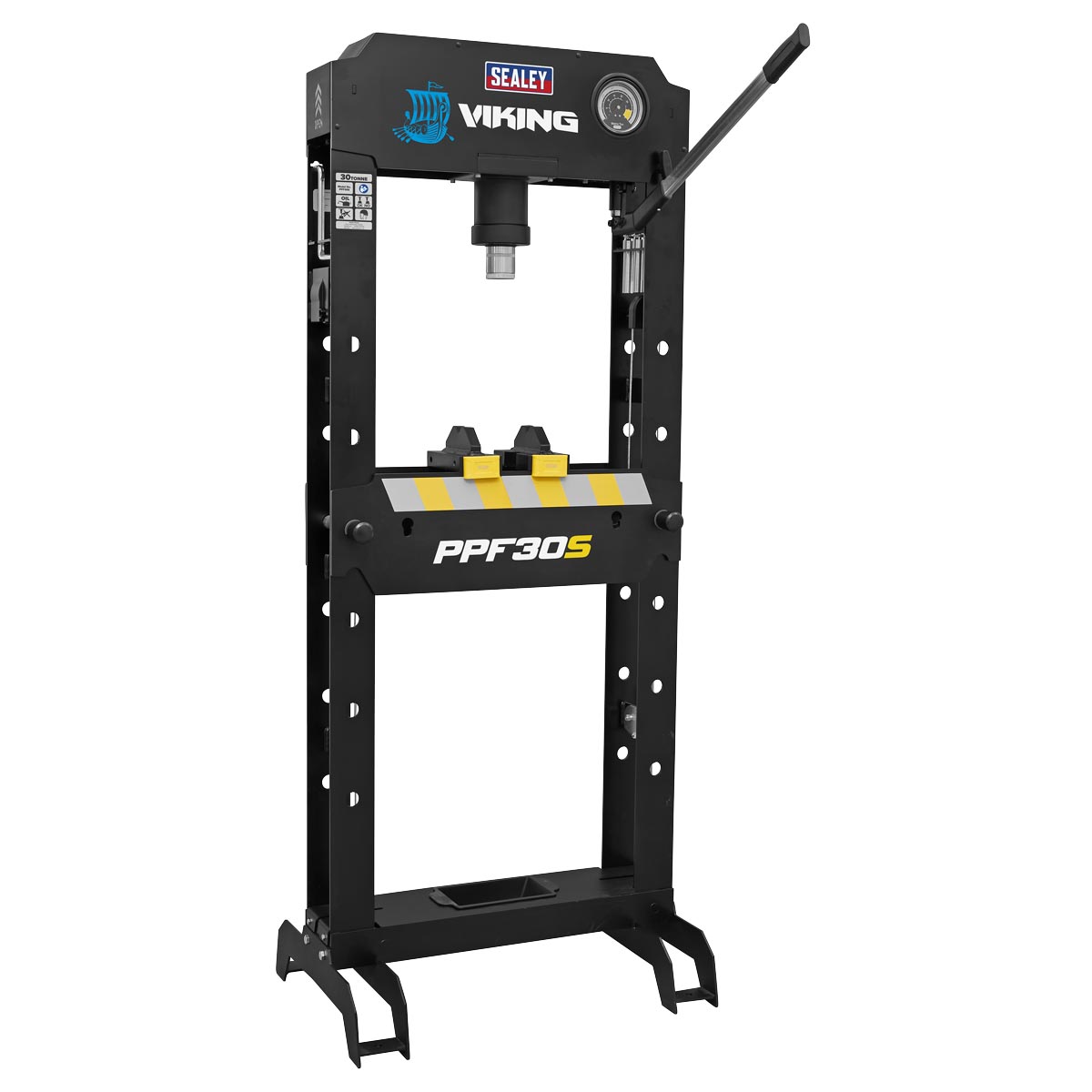

Viking Floor Type Hydraulic Press 30 Tonne
Product Overview
- Heavy-duty steel frame construction with handle operated hydraulic pump unit.
- Screw adjustable ram and adjustable work area with removable tray.
- Frame head fitted with ram pressure gauge.
- Winch assisted press table adjustment.
- Storage for press pins included in frame.
- Supplied with press pins, flat pressing plate/V-blocks.
- 5 Year guarantee*.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.
Specification
- Model No PPF30S
- Bench or Floor Mounting: Floor
- Brand: Viking
- Capacity: 30 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: n/a
- Maximum Height - Ram to Table: 850mm
- Minimum Height - Ram to Table: 25mm
- Nett Weight: 125.9kg
- Operating Table Width: 540mm
- Overall Height: 1800mm
- Ram Diameter: Ø103.2mm
- Ram Stroke: 220mm
- Screw Extension: 75mm
- Table Aperture: 150mm
- Type: Floor
- Working Table Depth: 166mm
- Working Table Width: 710mm
