Diesel/Petrol Engine Timing Tool Combination Kit - for Ford, PSA - Belt/Chain Drive

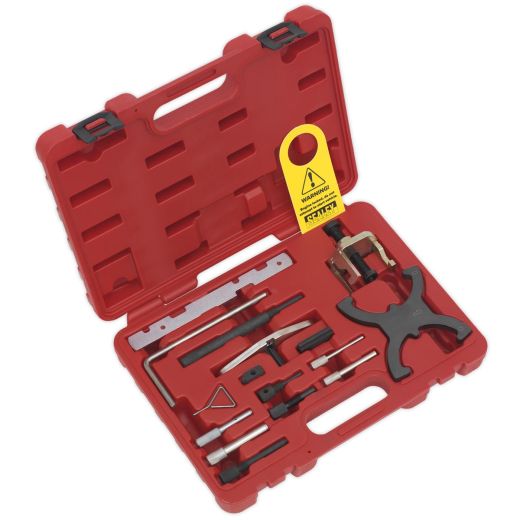

Suitable for a wide range of belt or chain driven petrol and diesel engines. Contains a camshaft sprocket puller and flywheel locking tools. Supplied in a storage case with instructions and a warning tag.

Specification

• Model No VSE5042A
• Citroen: Berlingo (05-11), Berlingo II (05-11), Berlingo III (08-18), Berlingo IV (18-19), C1 (05-10), C2 (03-10), C3 (02-10), C3 II (02-10), C3 III (10-17), CIII IV (16-18), C3 Pluriel (04-10), C3 Picasso (09-17), C4 (04-11), C4 II (11-18), C4 Picasso (06-18), C4 Grand Picasso (06-18), C4 Cactus (14-18), C5 II (04-08), C5 III (04-15), C-Elysee (14-18), DS3 (10-12), DS4 (11-12), DS5 (12-15), Dispatch (07-12), Jumpy III (07-12), Nemo (08-10), Xsara II (02-04), Xsara Picasso (04-10)
• Fiat: Scudo (07-12)
• Ford: B-Max (12-18), C-MAX (07-20), Cougar (98-01), Courier (00-02), EcoSport (03-18), Escort (94-98), Fiesta (95-21), Focus (98-20), Focus C-MAX (03-11), Fusion (02-12), Grand C-MAX (10-20), Galaxy (06-15), Ka (16-20), Kuga (08-18), Maverick (01-07), Mondeo (93-15), Orion (94-94), Puma (97-02), S-MAX (06-15), Tourneo Connect (02-13), Transit Connect (02-16), Transit (06-11), Transit Courier (12-20), Grand Tourneo Connect (13-15), Tourneo Courier (14-15)
• Jaguar: XF (12-16), XJ (13-17), XE (15-17)
• Land Rover: Freelander 2 (12-15), Discovery Sport (15-17)
• Mazda: 2 (02-12), 3 (09-15)
• Peugeot: 107 (05-10), 1007 (05-10), 206 (01-11), 206+ (09-13), 206 CC (05-07), 207 (06-13), 207 CC (07-15), 208 (11-18), 307 (01-08), 308 (07-18), 308 CC (09-15), 407 (05-11), 508 (04-17), 2008 (13-17), 3008 (09-18), 4008 (12-15), 5008 (09-17), Bipper (08-10), Expert III (07-12), Partner (05-11), Partner II (05-11), Partner III (08-17)
• Range Rover: Evoque (11-17)
• Suzuki: Liana (04-08), SX4 (07-11)
• Toyota: Aygo (05-10)
• Volvo: C30 (06-13), S40 (04-12), V40 (12-15), V40 Cross Country (13-15), V50 (04-12), V60 (11-15), V70 (11-15), S60 (11-15), S80 (09-15)
• Brand: Sealey
• Engine Codes:
• 1.2: APKE, B1KE, BK2A, YSKD, YSKE
• 1.25 16v: DHA,DHB,DHC,DHD,DHE,DHF,DHG,F8JA,F8JB,FUJA, FUJB,M7JA,M7JB,SNJA,SNJB,SNJC,SNJD,STJA,STJB, STJC,STJD
• 1.4 16v: ASDA,ASDB,FHA,FHB,FHD,FHE,FHF,FXDA,FXDB,FXDC, FXDD,FXJA,FXJB,FXJC,RTJA,RTJB,SPJA,SPJC,SPJD,SPJE, SP5D,SP5E,UTJA
• 1.4 D-4D, 1.4DDiS, 1.4TDCi, 1.4HDi: DV4TD(8HT),DV4TD(8HX),DV4TD(8HZ),DV4TD (8HW),DV4TED4(8HX),DVTED4(8HV),DV4TED4 (8HY),DV4C(8HP),DV4C(8HR),DV4TE (8HS),F6JA,F6JB,F6JC,F6JD,KVJA,DV4(8HY),ZWZ-TV
• 1.5 EcoBoost: M8DA,M8DB,M8DF,M8MA,M9DA,M9DB,M9MA,UNCE, UNCF,UNCI,UNCJ,UNCK
• 1.5TDCi: ENUG,UGCA,UGJC,XUJA,XUJB,XUJF,XUJG,XUJH,XUJK, XUJN,XWDA,XWDB,XWDC,XWDD,XWDE,XWJB,XWJC, XXDA,XXDB,XXDC,XXDD,XXDE
• 1.6 16v: FYDA,FYDB,FYDC,FYDD,FYDH,FYJA,FYJB,FYJC,HWDA, HWDB,IQBD,IQJA,IQJC,L1F,L1J,L1N,L1Q,L1L,L1T,L1V, L1W,SHDA,SHDB,SHDC
• 1.6 EcoBoost: JQMA,JQMB,JTMA,JTBA,JTDB,JQDA,JQDB,JTJA,JTJB, JQGA,MUDA,MUDD,JTDA,JTBB,JTWA,JTWB
• 1.6D/eDrive/Multijet/DDiS/HDi/Blue-HDi/TDCi: DV6ATED(9HY), DV6ATED4(9HX), DV6CATED(9HX), DV6BTED4(9HW), DV6DTED(9HP), DV6DTED(9HJ), DV6ETED(9HN), DV6(9HX), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC), DV6DTED(9HC), DV6AUTED4(9HX), DV6D(9HP), DV6TED4B, DV6DTED(9HF), DV6C(9HD), DV6C(BHX), DV6C(BHZ), DV6(9HR), DV6C(9HL), DV6C(9HR), DV6FE(BHW), DV6FD(BHY), DV6FE(BHY), DV6FE(BXZ), DV6TED4(9HY), DV6TED4(9HZ), DV6TED(9HD), DV6TED(9HP), DVTED4(9HV), DV6TED4(9HX), DV6TED4BU(9HS), DV6BTED4(9HT), DV6BUTED4(9HT), DV6TED4B(9HV), DV6UTED4(9HX), DV6UTED4(9HU), DV6TED4(9HV), DV6TED4(9HW), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6C (9HD), D4164T, D4162T, G8DD, GPDA, G8DA, G8DB, G8DE, G8DF, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, MZ-CD, MZ-CD (Y6), T1DA, T1DB, T3DA, T3DB, TZJA, TZJB, UBJA, Y6
• 1.6Ti-VCT, 1.6Ti-VCT FFV, 1.6Ti-VCT S: HXDA,HXJA,HXJB,IQDA,IQDB,IQDC,IQJE,MUDA, MUDD,PNBA,PNDA,PNDD,RHBA,SIDA,U5JA,XTDA, XTDB
• 1.8 16v: CDBB,CGBA,CGBB,CHBA,CHBB,CSDA,CSDB,EYDB, EYDC,EYDD,EYDE,EYDF,EYDG,EYDI,EYDJ,EYDL,EYPA, EYPC,QQDA,QQDB,QQDC,QQDD,Q7DA,RKA,RKB,RKC, RKF,RKH,RKJ,RKK
• 1.8TDCi, 1.8TDCi ECOnetic, 1.8TDdi, 1.8D Turbo: BHDA,BHDB,BHPA,C9DA,C9DB,C9DC,FFBA,FFDA, FFWA,F9DA,F9DB,HCPA,HCPB,KHBA,KKDA,KKDB,P7PA, P9PA,P9PB,QYBA,QYWA,R2PA,R3PA,RFN,RTN,RTQ, RTP,RWPA,RWPC
• 2.0 16v: AOBA,AOBC,AODA,AODB,AODE,AOWA,AOWB,CJBA, CJBB,EDBA,EDBC,EDBB,EDBD,EDDB,EDDC,EDDD,EDDF, NGA,NGB,NGC,NGD,SYDA,TBBA,TBBB,TBWA,TBWB, YF,204PT
• 2.0 ST150, 2.0 16v.RS, 2.0 ST, 2.0 ST170: ALDA,HMDA,N4JB,T8DA
• 2.0D HDi, 2.0 TDCi: AZBA,AZBC,AZWA,AZWC,G6DA,G6DB,G6DC,G6DD, G6DE,G6DF,G6DG,IXDA,KLBA,KLWA,LPBA,TXBA, TXDA,TXDB,TXMA,TXWA,TYBA,TYWA,TYDA,T7DB, T8DF,UFBA,UFDA,UFDB,UFMA,UFWA,UKBA,UKBB, UKDB,UKDA,UKMA,UKWA,QXBA,QXBB,QXWA,QXWB, RHE(DW10CTED4)
• 2.2 TDCi: KNBA,KNWA,Q4BA,Q4WA
• 2.3 16v: GZFA,GZFB,GZFC,GZ,SEBA,SEWA
• Nett Weight: 1.72kg
• OEM Tools:
• Ford: 303-732, 303-620, 303-507, 303-193, 303-393A, 303-393-02, 303-393-01, 303-651, 303-376, 303-734, 303-1054, 303-748, 303-1097, 303-1059, 303-735
• Peugeot/Citroen: 21-229, 0194-C, 0194-B
• Mazda: 49JE01054, 49JE01061, 49JE02021
• Suzuki: 09910-05410
• Volvo: 999-7151, 999-7169, 999-7406, 999-7429, 999-7121, 999-7122
• JLR: 303-1272, 303-748, 303-1270
