Armorgard Volthub
In Stock , approximate delivery 3 - 5 working days
1+
Select Please choose a charging type:
Code
Details
VoltHub Battery Charging 16 locker station with IEC 60309 sockets 1770W x 750D x 1820H
1+
VoltHub Battery Charging 16 locker station with UK 3-Pin sockets 1770W x 750D x 1820H
1+
Product Overview
- Hold large power tools and batteries, including lithium-ion batteries (LIB)
- VoltHub includes an agent to prevent LIB fires
- Targeting foam system that will detect and deploy in case of fires automatically
- Prevent fires that will affect other batteries
- Portable across workplaces thanks to sturdy castor wheels
- RCD protection
- Weatherproof finish for use on site
- Meets multiple certifications

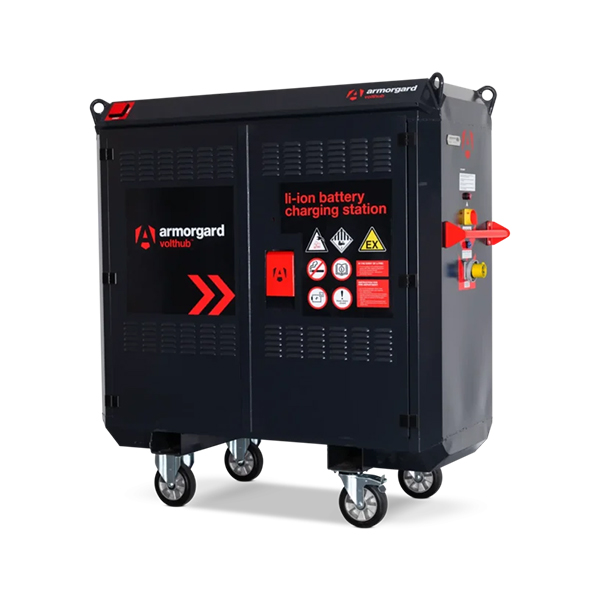

The Armorard VoltHub is a portable solution for charging lithium-ion batteries (LIB) whilst on job sites. Featuring 200mm castors, it is durable for movement around construction and building sites. Automatic fire detection systems have been built into this locker trolley, helping to prevent fires from spreading in emergencies.
- Can be used outside thanks to IP55 rating
- Comes with 2 cam lock keys as standard
- Powder-coated for protection against wear and tear
- 1.5mm steel thickness
- Improved airflow with ventilation
- Integral isolator switch
- Humidity sensor
- Communications port to integrate with your fire control system
- Visual and audible alarm in case of a fire
- Automatic power cut-off if temperatures exceed 60 degrees
VH16 110V Specification:
- Power supply of 110 volts
- Power inlet of 110v 32A IP67
- Contains 32 power sockets

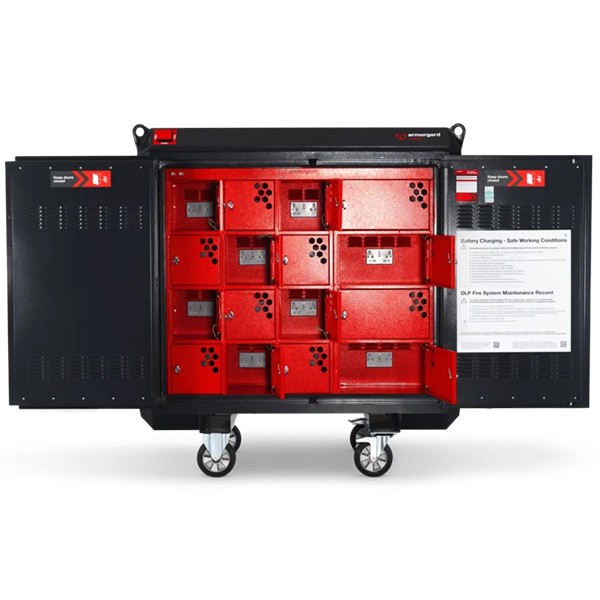

- 16 individual locking compartments
VH16 240V Specification:
- Power supply of 240 volts
- Power inlet of 240v 32A IP67
- Contains 32 power sockets
- 16 individual locking compartments
Technical Specification:
- Dimensions: H1820 x W1770 x D750mm
- Internal dimensions (Small Compartment): H260 x W260 x D355mm
- Internal dimensions (Large Compartment): H260 x W475 x D260mm
- Weight: 334kg
- Castor wheel dimensions: 200mm
Certfications:
- NTA8133-2021
- EN60529: 1992 + A2: 2013
- NEN 1568
- BS EN IEC 16000-6-3: 2021
- BS EN IEC 16000-6-2:2019
- EN 60335-1:2012
- EN 60335-2-29: 2019
- EN 3-7+A1: 2007 & NF074
