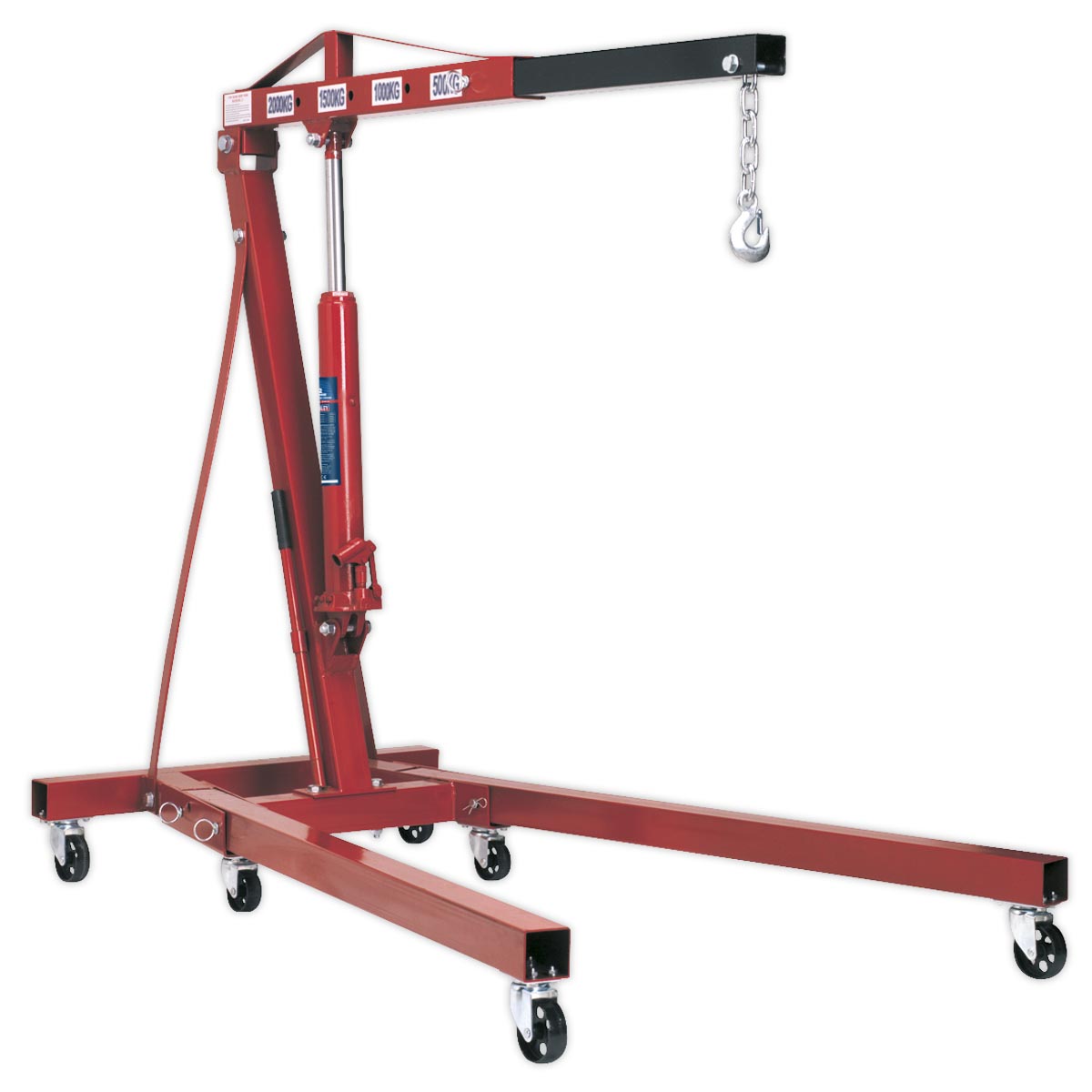

Folding Engine Crane 2 Tonne
Product Overview
- Lifts 2000kg at 930mm jib extension.
- Folds for easy storage, freeing valuable workshop space when not in use.
- Bottle jack type hydraulic unit for economy.
- Some self-assembly required.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
2 tonne folding crane - economy model. Folds for easy storage, freeing valuable workshop space when not in use. Heavy-duty castors. Weighs only 77kg and is perfect for mobile or workshop use. Pump access from side. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
Specification
- Model No PH20
- Brand: Sealey
- Height Jib Down: 1440mm
- Height Legs Folded: 1540mm
- Height of Frame: 195mm
- Length Legs Extended: n/a
- Length of Jib Position 1: 930mm
- Length of Jib Position 2: 1110mm
- Length of Jib Position 3: 1200mm
- Length of Jib Position 4: 1460mm
- Length of Jib Position 5: n/a
- Length: 1750mm
- Lifting Capacity in Position 1: 2000kg
- Lifting Capacity in Position 2: 1500kg
- Lifting Capacity in Position 3: 1000kg
- Lifting Capacity in Position 4: 500kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 2060mm
- Max. Lift Ht at Jib Position 2: 2190mm
- Max. Lift Ht at Jib Position 3: 2330mm
- Max. Lift Ht at Jib Position 4: 2490mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 77kg
- Rear Width: 850mm
- Width Front Frame: 1055mm
- Width Inside Front Frame: 915mm
