Heavy Duty Galvanised Midispan Racking - Up to 8800kg
In Stock , approximate delivery 3 - 5 working days
1+
Select a Height:
Select a Width:
Select a Depth:
Code
Details
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
1+
Product Overview
Our Galvanised Midispan Heavy Duty Shelving range is a robust, high-quality Longspan Shelving System ideal for the most demanding industrial environments.
- Frame capacities up to 8800kg UDL
- 5-Year Guarantee
- Shelf capacities up to 750kg UDL*
- Heavy-duty Galvanised Steel construction
- Easy to build and restructure
- 4x height variations with 6x widths and 4x depths
- Can build a high bay or multi-tier installation
- Adjustable beams every 25mm
Our Galvanised Midispan Longspan Shelving Unit is versatile and hard-wearing. Ideal for heavy-duty industrial environments such as warehouses, storerooms, stockrooms, workshops, and retail/catering. Our specialist heavy duty shelving units are designed to be robust and durable. Available in a wide range of sizes, offering you complete flexibility when designing your warehouse or storeroom.
Shelving Beam Levels
The shelving beam levels can be adjusted at 25mm increments and come decked with heavy-duty steel shelf panels that sit flush with the top of the beam. This high-quality design eliminates any sharp edges when assembling or in use. Making the system safe to assemble and use.
*If you require information on the beam level load capacities, view our latest Data Specification Sheet. This will provide you with UDL capacities on both the C50 and C70 beams.
C50 Beams:
- 55mm beams
- Fits into 2 lugs (holes in frame)
- 3x widths – 1000, 1200, 1600mm
C70 Beams:
- 80mm beams
- Fits into 3 lugs (holes in frames)
- Support heavier UDLs (uniformity distributed loads)
- 6x widths – 1000, 1200, 1600, 1800, 2000, 2400mm
Depth Options:
- 600, 800, 1000, 1200mm
M70 Profile Uprights:
- 4x height options – 2550, 4500, 5550, 6000mm
- M70 maximum bay load – 8800kg
How To Buy

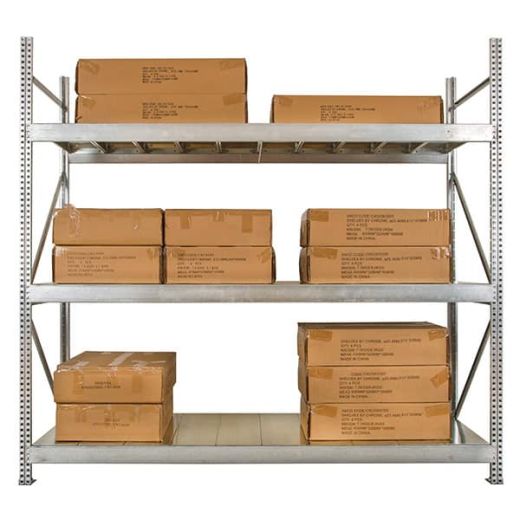

For a single bay, you will need to purchase 2x end frames as well as the required number of shelves (prices in the table are for 1x end frame and 1x shelf level). For Extension Bays add 1x end frame plus the number of shelf levels you require. To build the bay shown in the main product image you will require 2x end frames plus 3x profile beams.
Please Note
- Frame total load capacities are based on shelf levels placed a 400mm intervals.
- Shelf load capacities are dependent on size and beam profile. Please see the specification table for further load information.
Specifications
- Upright Construction: Galvanised Steel
- C50 and C70 Beam Construction: Galvanised Steel
- Shelf Construction: Galvanised Steel Panels
- Galvanised Grey RAL7037
As well as single-tier installations, our expert shelving installation team are also able to provide high-bay and multi-tier installations. Workplace Products provide FREE Site Surveys for all our shelving projects. If you require further information or need a large project completed, contact our sales team on 01922 743 833. Alternatively, Contact Us via our Live Chat service.
