Combination Stations
In Stock , approximate delivery 3 - 5 working days
1+
Code
Details

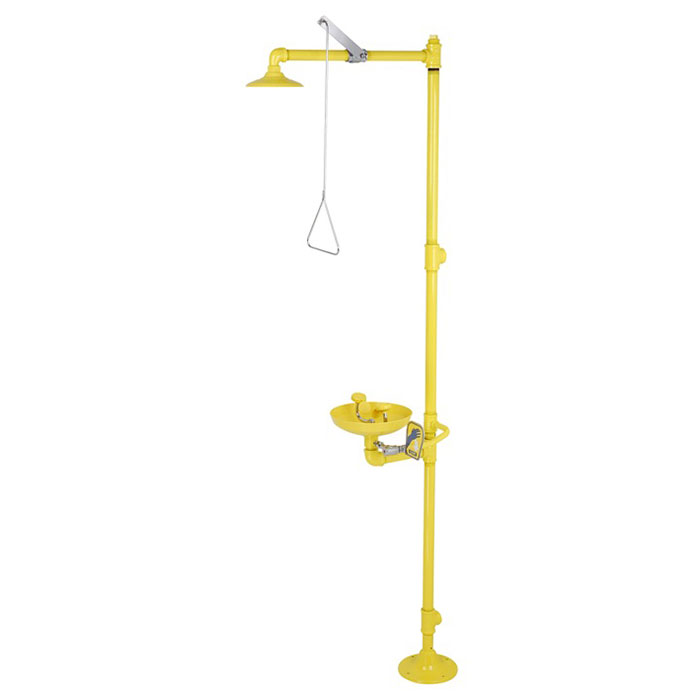

Combination Drench Shower - Plastic Head
1+

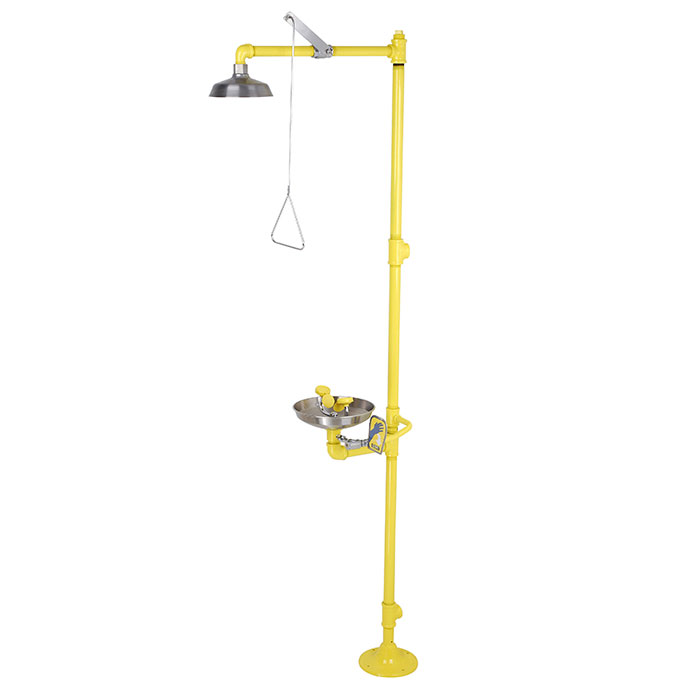

Combination Drench Shower - Stainless Head
1+
Combination Drench Shower - All Stainless
1+
Product Overview
- Pedestal mounted combination station
- Eye/face wash bowl with spray heads, stay open valve and push handle
- Drench shower head with stay open valve and pull rod
- Galvanised steel piping
- Cast iron floor flange
- ABS plastic or stainless steel options
- ANSI compliant, vertical identification sign
- Weekly test tag
These pedestal mounted combination stations come with an eye/face wash, with a plastic or stainless steel bowl, ABS plastic eye/face wash spray heads, an in line strainer and a stay-open 1/2" ball valve with a push handle and a shower with a plastic or stainless steel shower head and a 1" stay-open ball valve with a pull rod.
- Shower head: Stainless steel, 188 mm diameter shower head with a 7 5 liters/minute flow regulator.
- Shower Valve: 1" rough chrome plated brass stay - open ball valve. Unit is provided with a stainless steel actuator arm and a 737 mm stainless steel pull rod.
- Eye/Face Wash Bowl: Stainless steel, 300 mm diameter bowl.
- Spray Head Assembly: ABS yellow plastic eye/face wash heads with integral flip dust covers, internal flow controls and filters to remove debris from the water.
- Eye/Face Wash Valve: 1/2" chrome plated brass stay - open ball valve with a stainless steel push handle and a 50 mesh inline strainer.
- Water Supply: 1 - 1/4" BSP female threaded side or top inlet.
- Waste: 1 - 1/4" female outlet.
- Piping & Mounting: Schedule 40 galvanised steel piping and a 232 mm diameter cast iron floor flange with a yellow powder coated finish.
- Universal Sign: ANSI compliant, vertical identification sign.
- Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.
- Compliances: Test rating conditions a re compliant to ANSI Z358.1 - 2014.
