Galvanised Impact Protection Railing System
Made to order , approximate delivery 15 - 20 working days
1+
Select the barrier height:
Code
Details

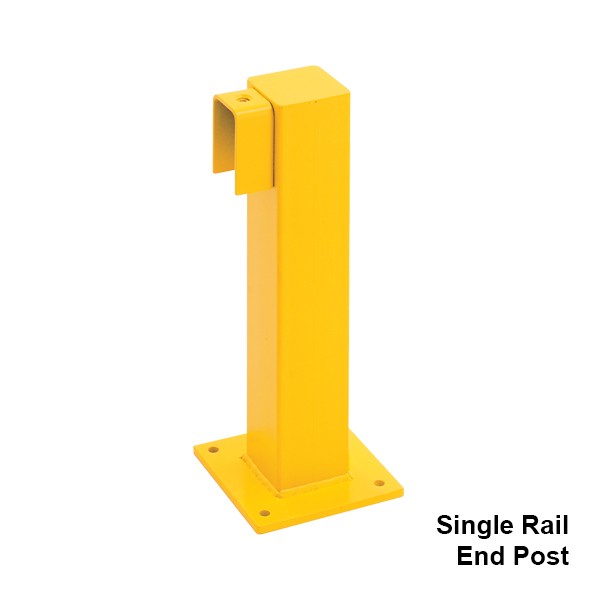

End Post H500mm
was £128.05
was £153.66
1+

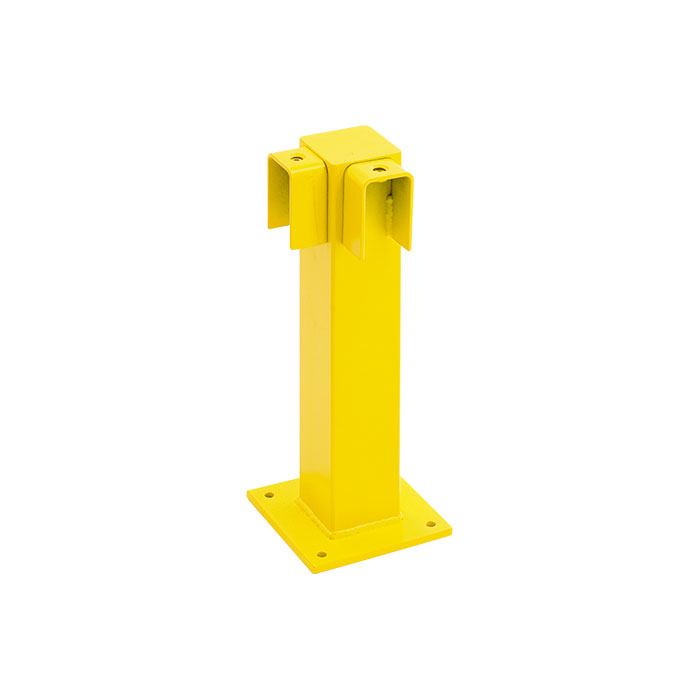

Corner Post H500mm
was £139.35
was £167.22
1+

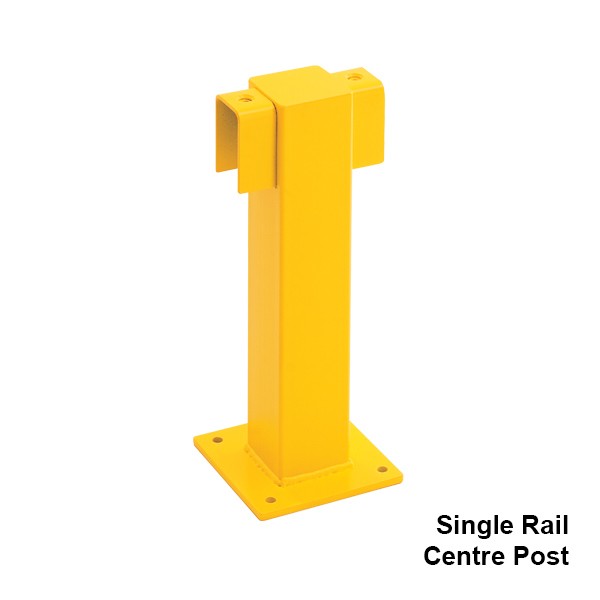

Centre Post H500mm
was £141.47
was £169.76
1+

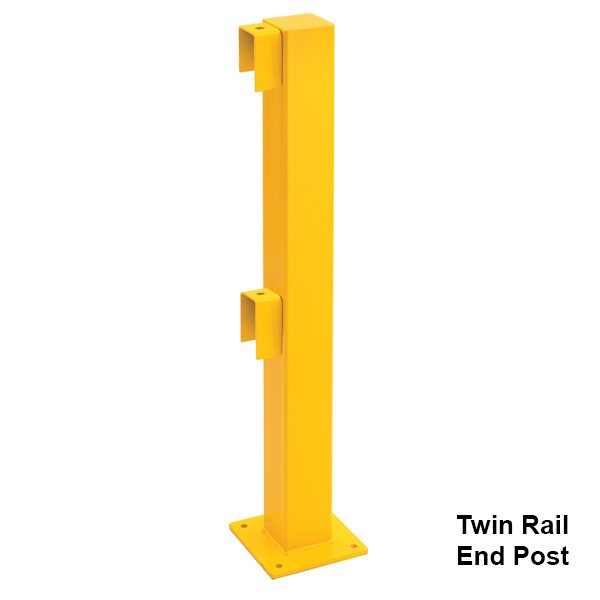

End Post H1000mm
was £191.4
was £229.68
1+

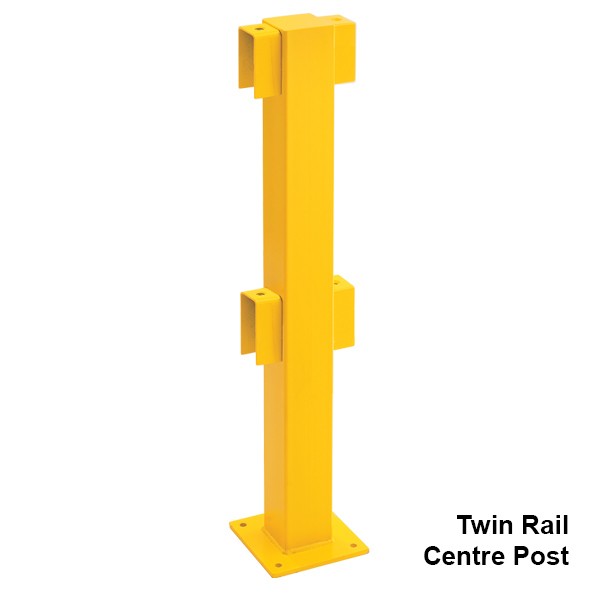

Centre Post H1000mm
was £218.34
was £262.01
1+

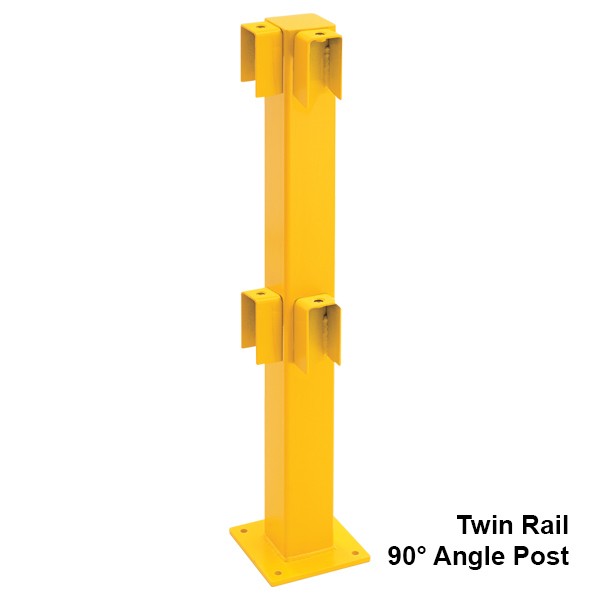

Corner Post H1000mm
was £226.64
was £271.97
1+
Code
Details

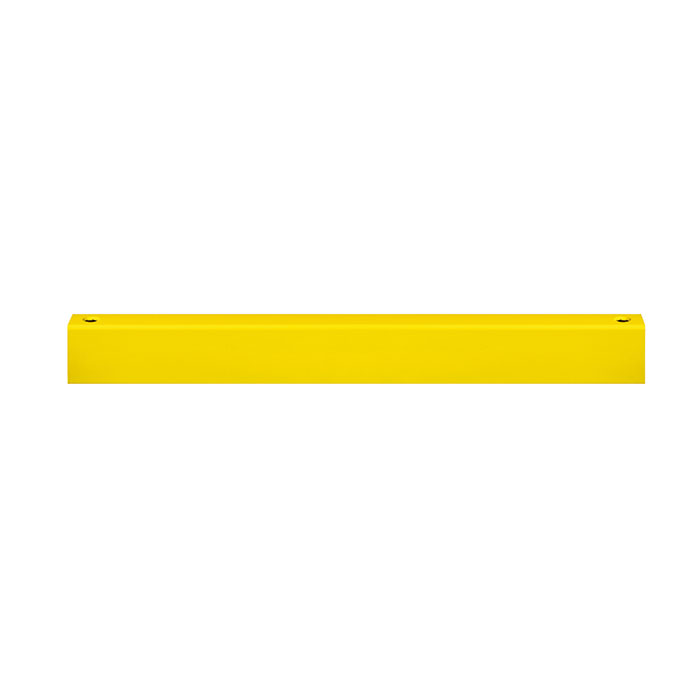

Lateral Rail L1000mm
was £134.14
was £160.97
1+
Lateral Rail L1200mm
was £144.56
was £173.47
1+
Lateral Rail L1500mm
was £179.13
was £214.96
1+
Lateral Rail L2000mm
was £233.69
was £280.43
1+
Code
Details
Rawl Bolt 8mm x 100mm diameter(Single)
1+
Throughbolt Anchor - 12mm x 120mm
1+

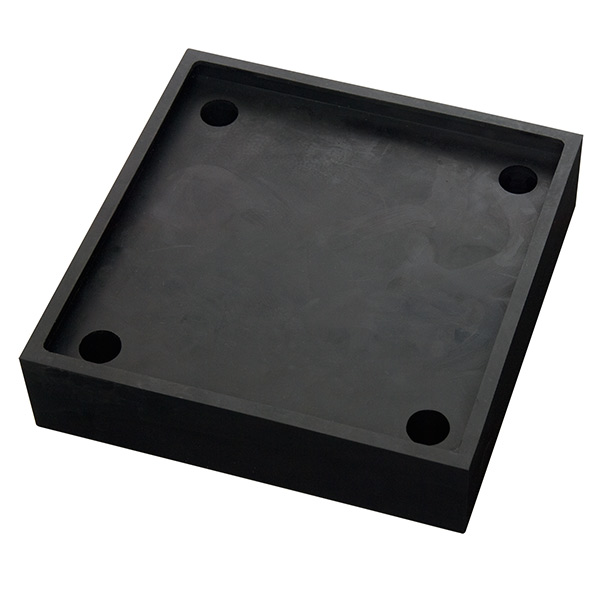

Shock Absorber Pads
was £44.14
was £52.97
1+
Product Overview
- Provides protection for pedestrians from vehicular traffic
- Modular design for quick and easy installation
- Counter sunk bolts secure rails to posts
- Can easily be extended if needed
- Damaged sections are easily replaced
- Easily secured with 4 raw bolts per base plate (available below)
- Suitable for indoor and outdoor use
- TUV-tested according to DGUV 108-007
- Offer powder-coated alternative

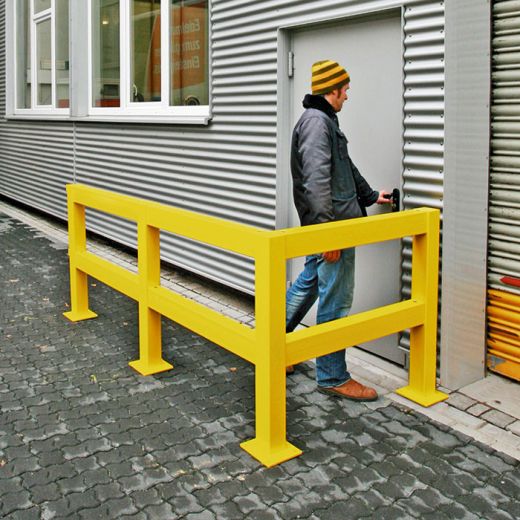

This heavy duty impact protection railing system is engineered to provide protection to pedestrians from vehicular traffic in the workplace. The modular design enables you to customise the railing system to suit your requirements with a quick and easy installation. Lateral rails are available in 4 lengths and the option of half height (500mm) or full height (1000mm) posts. Each piece is galvanised and powder coated yellow for high visibility.
Post Specification:
- Size: 100 x 100mm square
- Height: 500mm and 1,000mm
- Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)
Lateral rail Specification:
- Size: 120mm x 80mm x 4mm wall
- Lengths: 1,000, 1,200, 1,500, or 2,000mm
How to purchase:
- Select type of barrier required
- Add at least 2 end posts to basket for a basic barrier system
- Add centre and corner posts to suit the shape of your space
- Add lateral rails, with H1000mm needing 2 rails per post.
- Add fixing method to basket either Throughbolt Anchor set or Rawl Bolt
- Optional Shock Absorber pad: Gives up to 10 degrees from verticle to help around moving vehicles
