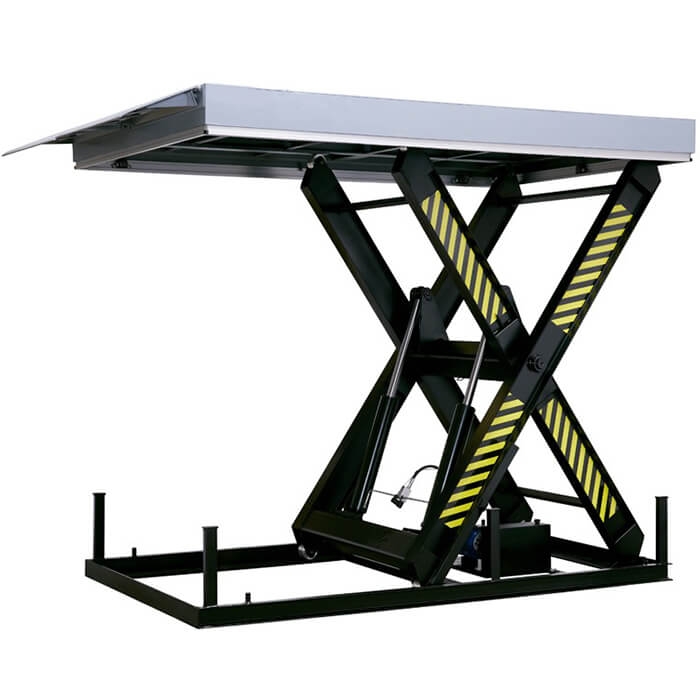

5000kg Single Scissor Lift Table
In Stock, approximate delivery 7 - 10 working days
Product Overview
- Capacity: 5000 kg
- Stroke: 2030 mm
- Lift time: 53 sec
- Cee power plug
- Hand controller
- Mechanical lock
- Safety trip bar
- Hose burst valves
- A variety of safe maintenance features included
- Optional accessories (contact our sales team)
- Contains two piece loading ramp of 427 x 980mm each
- Loading flap comes as standard
- Lift is commonly used for loading docks, placed between a landing platform and a truck
Single scissor lift tables with 5000kg lift capacity. The lift tables can be mounted on the floor or in a pit. They are fully tested prior to despatch and are ready to use when delivered. Each table is CE marked and complies with the requirements of EN 1570-1 + A1, 2nd version 2014-10-09. Accessories are available to order, including an extra hand controller and limit switch.
The 5000kg load capacity means that the lift is ideal for lifting extra large and heavy loads to a comfortable working height. Customers can be assured that the scissor lifts are safe to use due to being tested prior to despatch. In addition, the lift table contains extra safety maintenance features that will be extremely useful to the operator. These include safety bars, hose burst valves and a control box for simplicity of use.
Supplied with a 400 Volt, 3 phase, 50 hertz power supply as standard. Conversion to a single-phase power supply is available POA.
Specifications:
- Lift height: 600 - 2630 mm
- Table size: L3000 x W2000 mm
- Base dimensions: L2965 x W1690mm
- Platform table dimensions: L2980 x W2000mm
- Loading flap dimensions: L427 x W980(x2)mm
- Closed height: 600mm
- Total height: 2630mm
- Platform length: 3000mm
- Platform width: 2000mm
- Weight: 1750kg
