600kg U-Shape Low Profile Lift Table
In Stock, approximate delivery 7 - 10 working days
Product Overview
- Capacity: 600 kg
- Stroke: 775 mm
- Lift height: 85 - 860 mm
- Table size: L1450 x W985 mm
- Lift time: 22 sec
- Cee power plug
- Hand controller
- Mechanical lock
- Safety trip bar
- Designed to last due to state of the art electrical components and wiring
- Passed a thorough quality protocol and check procedure
- Hose burst valves

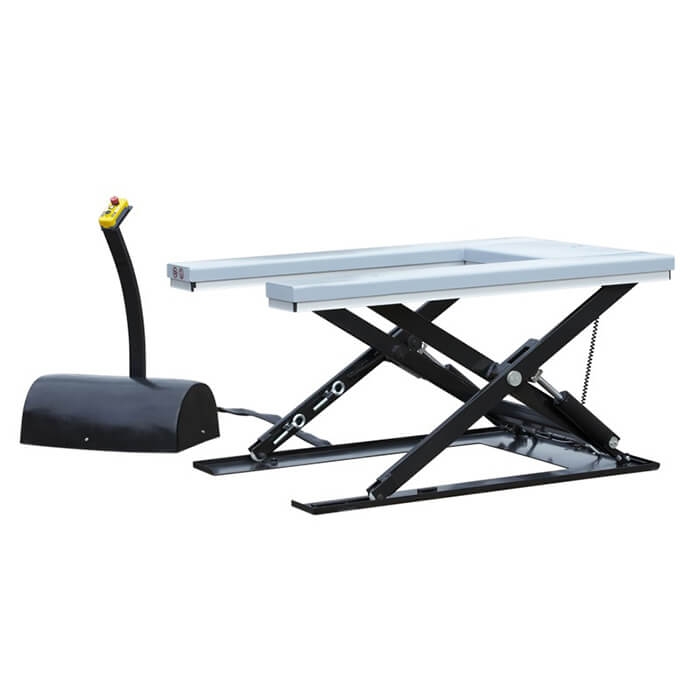

U shape scissor lift table with 600kg lift capacity. The low profile of the lift table allows easy loading by pallet truck, without the need for it to be installed in a pit. The U shape table is designed to accomodate nearly all different high lift pallet trucks and stackers, and the platform perfectly fits EU pallets. The low profile lift table comes with a free standing motor and hydraulic pump with control box on the floor. It is fully tested prior to despatch and is ready to use when delivered. Each table is CE marked and complies with the requirements of EN 1570-1 + A1, 2nd version 2014-10-09. Accessories are available to order, including extra hand controller and limit switch.
Specification
- Travel: 775mm
- Closed height: 85mm
- Total height: 860mm
- Platform length: 1450mm
- Platform width: 985mm
- Capacity: 600kg
- Lifitng time: 23 seconds
Supplied with a 400 Volt, 3 phase, 50 hertz power supply as standard. Conversion to a single phase power supply is available POA.
