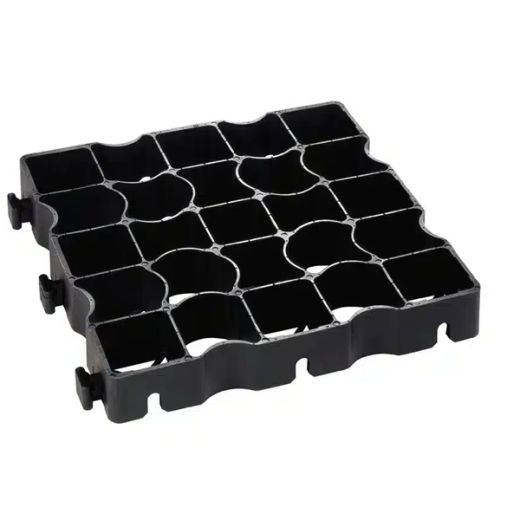

EcoGrid E50 330mm x 330mm x 50mm

Shop our Eco Grid Porous Pavers, a sustainable alternative to concrete tarmac or paving stones. Our Eco Grids are a ground reinforcement solution which allows water to pass through and into the ground rather than create run off. They are a great option for contractors and homeowners, as an environmentally friendly urban drainage system. Ideal for gardening, agriculture, landscaping, driveways, footpaths, carparks etc.

Specification:

• Measurements: 330mm (W) x 330mm (L) x 50mm (H)
• Weight: 0.58kg per grid
• Constructed from exclusively recycled materials, equivalent to 12.5 bottles and, completely recyclable
• 20 Year guarantee included as standard
• 54 units/ pallet - simple to store and reuse
• Lengthy life expectancy – expected to last 30 years plus
• Weather protection by allowing rainwater to infiltrate the ground you reduce the risk of flooding.
• Ability to combat extreme temperatures, resistant to overheating and damage from freeze-thaw cycles

Options Available:

• Weight limit variations available, see related products
• Available in a range of colours including black, green and terracotta. Alternative colour option available, dependant on order quantity. Speak tour sales team for more information. .

Suitable Environments:

• Perfect for usage in driveways, patios, garden path etc for reinforcement.
• Permanent stabilisation and ground reinforcement for ground
• Professional usage applications in gardening, soil drainage, car parks, landscaping, agriculture and footpaths.
• Weight distribution performance of these grids is based on the ground conditions, weight and type of vehicle or plant
• A 5mph site limit must be adhered to when using this product

Sizes Available:

• E50: 1000 tonnes for heavy-duty ground reinforcement
• E30 (250 tonnes) and E40 (500 tonnes) also available, see related products

Installation:

• 1 tonne of decorative stones is suggested per 15sqm of grids
• For the best results, care should be taken as the start of the project to ensure appropriate ground preparation. we also recommend a site survey.
• The Eco Grid has an exclusive patented lock and connection system to make instillation simple.
• During installation the lugs on the first row should point in the direct which you are working in, the subsequent rows should then be pressed onto the lugs of the laid surface. We suggest using a plumb line for this to help maintain a consistent slop and proper drainage.
• Following instillation, the grids should be filled and finished. a wide variety of mixtures can be used for this including crushed stone, gravel, pea shingle, grass seed or soil, depending on your requirements.
